NST Custom Flat Single Wave Washer / Metric Wave Washer For Expenders

Name: NST Custom Flat Single Wave Washer Metric Wave Washer For Expenders
Brand: lisprings
Price: 1 USD

Wholesale NST Custom Flat Single Wave Washer / Metric Wave Washer For Expenders from china suppliers

Brand Name : lisprings

Model Number : NST

Certification : ISO9001 TS16949

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Supply Ability : 10000000

Delivery Time : 7 work days

Packaging Details : Bulk packaged or Customize

Name : NST Single Turn Wave Spring

Size : 5mm-1000mm

Tooling Charge : Free

Used For : Bearing

Material : Carbon steel or Stainless Steel

Stock : More than 2000 Types

Contact Now

Single Turn Wave Spring Custom Flat Nest Turn Wave Springs For Expenders

Description:

Single-turn wave springs are used for several applications, mainly designed for short deflection and low to medium forces. Technology enables to provide a dependable and accurate fit.

The free ends of a wave spring with gap type are allowed for the spring outside diameter grows during compression, which if constrained in a bore prevents binding of comparable stamped wave washers, this design has dramatically improved the fatigue resistance and lifetimes. Thus reduces costs effectively.

The Gap Type: As its name implies there is a small gap in the wave circumference.

Material:

Carbon steel(SWC), 65Mn, Cold roller steel, Stainless steel(SUS), Beryllium copper, Phosphor copper, Brass, Music wire, Piano wire(SWP), 60Si2Mn, 55CrSi, Ect.

Surface treatment

Zinc plating, chrome palting,nickel plating,painting,sand blasting,powder coating,polishing,anodized,baking finish,oxidation,electroplate,passivate

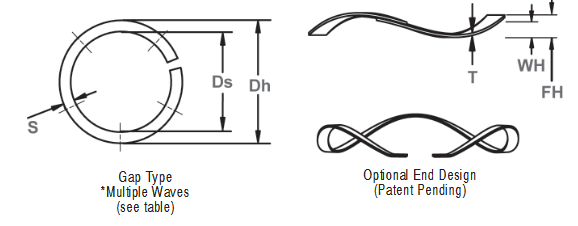

Wave spring measurements:

Specification:

Part Number	Bearing O.D.(mm)	Clears Shaft Diameter(mm)	Load (N)	Work Height (mm)	Free Height (mm)	Number of Waves	Thickness (mm)	Radial Wall(mm)	Spring Rate(N/mm)
LB-0035	9	6.86	25.8	1	1.5	3	0.2	0.81	52
LB-0039	10	7.49	27.6	1	1.57	3	0.2	1.02	48
LB-0043	11	8.46	29.4	1	1.83	3	0.2	1.02	35
LB-0047	12	9.17	33.4	1	1.57	3	0.25	1.17	59
LB-0051	13	9.53	37.8	1	1.57	3	0.25	1.47	66
LB-0063	16	11.28	44.5	1.57	2.29	3	0.25	1.98	65
LB-0075	19	14.28	53.4	1.57	3.05	3	0.25	1.98	35
LB-0087	22	16.46	62.3	1.57	2.79	3	0.3	2.39	48
LB-0095	24	18.46	66.7	1.57	3.56	3	0.3	2.39	35
LB-0102	26	18.22	71.2	1.98	2.54	3	0.41	3.38	111
LB-0110	28	20.22	75.6	1.98	2.79	3	0.41	3.38	85
LB-0118	30	22.22	84.5	1.98	3.3	3	0.41	3.38	66
LB-0126	32	24.22	89	1.98	3.81	3	0.41	3.38	52
LB-0138	35	27.22	97.9	1.98	4.57	3	0.41	3.38	38
LB-0146	37	28.72	102.3	1.98	3.81	3	0.46	3.63	58
LB-0158	40	31.72	111.2	1.98	5.08	3	0.46	3.63	37
LB-0165	42	33.72	115.7	1.98	3.05	4	0.46	3.63	99
LB-0185	47	38.72	129	1.98	3.81	4	0.46	3.63	68
LB-0205	52	43.11	142.4	2.36	3.56	4	0.61	3.76	121
LB-0217	55	46.11	151.3	2.36	3.81	4	0.61	3.76	100
LB-0244	62	51.69	169.1	2.36	4.32	4	0.61	4.52	85
LB-0268	68	57.17	186.9	2.77	4.32	4	0.76	4.78	131
LB-0276	70	59.17	191.3	2.77	4.32	4	0.76	4.78	119
LB-0284	72	61.17	195.8	2.77	4.57	4	0.76	4.78	108
LB-0295	75	64.17	204.7	2.77	5.08	4	0.76	4.78	94
LB-0315	80	68.66	218	2.77	5.59	4	0.76	4.78	76
LB-0335	85	71.38	231.4	2.77	5.59	4	0.76	5.92	83
LB-0354	90	76.38	249.2	2.77	6.35	4	0.76	5.92	68
LB-0374	95	81.38	262.5	2.77	7.37	4	0.76	5.92	57
LB-0394	100	86.38	275.9	2.77	4.57	5	0.76	5.92	157
LB-0413	105	91.38	289.2	2.77	5.08	5	0.76	5.92	134
LB-0433	110	96.38	302.6	2.77	5.33	5	0.76	5.92	115
LB-0453	115	101.38	315.9	3.18	6.35	5	0.76	5.92	99
LB-0472	120	106.38	329.3	3.18	7.11	5	0.76	5.92	86
LB-0492	125	111.38	342.6	3.18	7.62	5	0.76	5.92	76
LB-0512	130	116.38	356	3.18	8.64	5	0.76	5.92	67
LB-0532	135	121.38	369.3	3.18	9.4	5	0.76	5.92	59
LB-0551	140	126.38	382.7	3.18	6.86	6	0.76	5.92	108
LB-0571	145	131.38	396	3.18	7.37	6	0.76	5.92	97
LB-0591	150	136.38	404.9	3.18	7.87	6	0.76	5.92	87
LB-0630	160	146.38	440.5	3.18	9.4	6	0.76	5.92	71
LB-0650	165	151.38	453.9	3.18	10.41	6	0.76	5.92	64
LB-0669	170	156.38	467.2	3.18	11.18	6	0.76	5.92	58
LB-0689	175	154.16	480.6	3.96	8.13	6	0.81	9.53	116
LB-0709	180	159.16	493.9	3.96	8.64	6	0.81	9.53	105
LB-0728	185	164.16	507.3	3.96	9.14	6	0.81	9.53	97
LB-0748	190	169.16	520.6	3.96	9.91	6	0.81	9.53	88
LB-0787	200	179.16	547.3	3.96	7.11	7	0.81	9.53	174
LB-0807	205	184.16	560.7	3.96	7.37	7	0.81	9.53	161
LB-0827	210	189.16	578.5	3.96	7.87	7	0.81	9.53	149
LB-0847	215	194.16	591.8	3.96	8.38	7	0.81	9.53	138
LB-0866	220	199.16	605.2	3.96	8.64	7	0.81	9.53	128
LB-0886	225	204.16	618.5	3.96	7.11	8	0.81	9.53	203
LB-0906	230	209.16	631.9	3.96	6.1	9	0.81	9.53	303
LB-0925	235	214.16	645.2	3.96	6.35	9	0.81	9.53	283
LB-0945	240	219.16	658.6	3.96	6.35	9	0.81	9.53	265
LB-0984	250	229.16	685.3	3.96	6.86	9	0.81	9.53	232
LB-1024	260	239.16	712	3.96	7.37	9	0.81	9.53	205
LB-1043	265	244.16	725.3	3.96	7.62	9	0.81	9.53	193
LB-1063	270	249.16	743.1	3.96	8.13	9	0.81	9.53	182
LB-1102	280	259.16	769.8	3.96	8.64	9	0.81	9.53	162
LB-1142	290	269.16	796.5	3.96	9.4	9	0.81	9.53	144
LB-1181	300	279.16	823.2	3.96	10.41	9	0.81	9.53	129
LB-1221	310	289.16	849.9	3.96	7.11	9	1.07	9.53	264
LB-1260	320	299.16	876.6	3.96	7.62	9	1.07	9.53	239
LB-1339	340	319.16	934.5	3.96	8.64	9	1.07	9.53	198
LB-1378	350	329.16	961.1	3.96	9.4	9	1.07	9.53	180
LB-1417	360	339.16	987.9	3.96	7.62	10	1.07	9.53	271
LB-1457	370	349.16	1015	3.96	8.13	10	1.07	9.53	249
LB-1496	380	359.16	1041	3.96	8.64	10	1.07	9.53	229
LB-1535	390	369.16	1072	3.96	9.14	10	1.07	9.53	211
LB-1575	400	379.16	1099	3.96	9.65	10	1.07	9.53	196
LB-1614	410	382.82	1126	3.96	8.38	10	1.07	12.7	251
LB-1654	420	392.82	1153	3.96	8.89	10	1.07	12.7	233
LB-1693	430	402.82	1179	3.96	7.62	11	1.07	12.7	317
LB-1732	440	412.82	1206	3.96	8.13	11	1.07	12.7	295
LB-1811	460	432.82	1264	3.96	8.89	11	1.07	12.7	256
LB-1890	480	452.82	1317	3.96	8.13	12	1.07	12.7	318
LB-1969	500	472.82	1371	3.96	8.89	12	1.07	12.7	280
LB-2126	540	512.82	1482	3.96	8.89	13	1.07	12.7	303
LB-2284	580	552.82	1593	3.96	8.89	14	1.07	12.7	327
