Description:

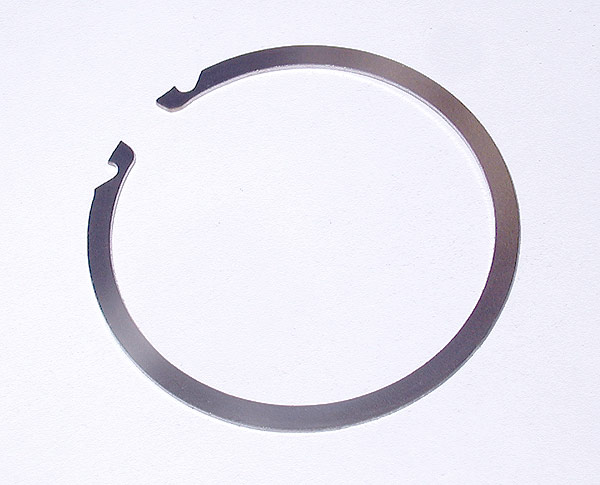

Constant Section Rings (Snap Rings) are reatining rings often specified for heavy duty or impact loading applications.
Produced by edgewinding, with no custom tooling charges, snap rings have been specified for many years in the automotive and heavy equipment industries as a standard choice of engineers.
We offers eight series of snap rings from stock:
Over 1,000 stock sizes
Inch and Metric series rings available
Stocked from .375” to 10” diameters, 13 mm to 300 mm
Customs available from .157” to 120”
Material:
Nickel alloys : Inconel 750/NO7750(2.4669), Inconel 600/NO6600(2.4816), Inconel 625/NO6625(2.4856), Inconel 718/NO7718(2.4668), Monel 500/NO5500(2.4375)
Elgiloy: UNS R30003
Cohalt alloys: L605(2.4964), N10276(2.4819), CR5(3.7164/3.7165)
Stainless steel: 316, 304(1.4301), 50CrV4(1.8159)
Steel: 60SI2Mn etc.
Specification:
| Part Number | Housing Diameter(mm) | Outside Diameter(mm) | Radial Wall(mm) | Thickness(mm) | Groove Diameter(mm) | Groove Width(mm) | Groove Yield(N) | Ring Shear (N) |
| FK-013 | 13 | 13.73 | 1.4 | 0.94 | 13.6 | 1.1 | 1931 | 10591 |
| FK-014 | 14 | 14.74 | 1.4 | 0.94 | 14.6 | 1.1 | 2077 | 11396 |
| FK-015 | 15 | 15.85 | 1.4 | 0.94 | 15.7 | 1.1 | 2602 | 12224 |
| FK-016 | 16 | 16.9 | 1.65 | 0.94 | 16.8 | 1.1 | 3172 | 13029 |
| FK-017 | 17 | 17.97 | 1.65 | 0.94 | 17.8 | 1.1 | 3367 | 13838 |
| FK-018 | 18 | 19.18 | 1.9 | 0.94 | 19 | 1.1 | 4457 | 14666 |
| FK-019 | 19 | 20.25 | 1.9 | 0.94 | 20 | 1.1 | 4702 | 15471 |
| FK-020 | 20 | 21.2 | 1.9 | 0.94 | 21 | 1.1 | 4951 | 16276 |
| FK-021 | 21 | 22.21 | 1.9 | 0.94 | 22 | 1.1 | 5200 | 17103 |
| FK-022 | 22 | 23.22 | 1.9 | 0.94 | 23 | 1.1 | 5445 | 17913 |
| FK-023 | 23 | 24.23 | 1.9 | 0.94 | 24 | 1.1 | 5698 | 18736 |
| FK-024 | 24 | 25.4 | 2.15 | 1.15 | 25.2 | 1.3 | 6539 | 23927 |
| FK-025 | 25 | 26.45 | 2.15 | 1.15 | 26.2 | 1.3 | 6806 | 24914 |
| FK-026 | 26 | 27.46 | 2.15 | 1.15 | 27.2 | 1.3 | 7082 | 25929 |
| FK-027 | 27 | 28.47 | 2.38 | 1.15 | 28.2 | 1.3 | 7353 | 26916 |
| FK-028 | 28 | 29.68 | 2.38 | 1.15 | 29.4 | 1.3 | 9702 | 27904 |
| FK-029 | 29 | 30.69 | 2.38 | 1.15 | 30.4 | 1.3 | 10053 | 28918 |
| FK-030 | 30 | 31.79 | 2.38 | 1.15 | 31.4 | 1.3 | 10395 | 29905 |
| FK-031 | 31 | 33.01 | 2.38 | 1.15 | 32.7 | 1.3 | 12660 | 30893 |
| FK-032 | 32 | 33.93 | 2.38 | 1.15 | 33.7 | 1.3 | 13073 | 31907 |
| FK-033 | 33 | 35.03 | 2.38 | 1.15 | 34.7 | 1.3 | 13478 | 32895 |
| FK-034 | 34 | 36.04 | 3.25 | 1.44 | 35.7 | 1.6 | 13892 | 40319 |
| FK-035 | 35 | 37.35 | 3.25 | 1.44 | 37 | 1.6 | 16899 | 41493 |
| FK-036 | 36 | 38.36 | 3.25 | 1.44 | 38 | 1.6 | 17375 | 42663 |
| FK-037 | 37 | 39.37 | 3.25 | 1.44 | 39 | 1.6 | 17869 | 43868 |
| FK-038 | 38 | 40.44 | 3.25 | 1.44 | 40 | 1.6 | 18344 | 45043 |
| FK-040 | 40 | 42.86 | 4.01 | 1.69 | 42.5 | 1.85 | 24265 | 55621 |
| FK-041 | 41 | 43.91 | 4.01 | 1.69 | 43.5 | 1.85 | 24866 | 56995 |
| FK-042 | 42 | 44.92 | 4.01 | 1.69 | 44.5 | 1.85 | 25484 | 58410 |
| FK-045 | 45 | 47.88 | 4.01 | 1.69 | 47.5 | 1.85 | 27303 | 62578 |
| FK-047 | 47 | 49.97 | 4.01 | 1.69 | 49.5 | 1.85 | 28504 | 65331 |
| FK-048 | 48 | 50.98 | 4.01 | 1.69 | 50.5 | 1.85 | 29118 | 66741 |
| FK-050 | 50 | 53.5 | 5.08 | 1.93 | 53 | 2.15 | 36529 | 75282 |
| FK-051 | 51 | 54.43 | 5.08 | 1.93 | 54 | 2.15 | 37249 | 76776 |
| FK-052 | 52 | 55.52 | 5.08 | 1.93 | 55 | 2.15 | 37974 | 78266 |
| FK-055 | 55 | 58.55 | 5.08 | 1.93 | 58 | 2.15 | 40163 | 82777 |
| FK-056 | 56 | 59.56 | 5.08 | 1.93 | 59 | 2.15 | 40906 | 84307 |
| FK-057 | 57 | 60.68 | 5.08 | 1.93 | 60 | 2.15 | 41631 | 85797 |
| FK-058 | 58 | 61.58 | 5.08 | 1.93 | 61 | 2.15 | 42352 | 87287 |
| FK-060 | 60 | 63.6 | 5.08 | 1.93 | 63 | 2.15 | 43819 | 90308 |
| FK-062 | 62 | 65.58 | 5.08 | 1.93 | 65 | 2.15 | 45283 | 93328 |
| FK-063 | 63 | 66.63 | 5.08 | 1.93 | 66 | 2.15 | 46008 | 94823 |
| FK-064 | 64 | 67.64 | 5.08 | 2.41 | 67 | 2.65 | 46751 | 114742 |
| FK-065 | 65 | 68.7 | 5.08 | 2.41 | 68 | 2.65 | 47471 | 116517 |
| FK-067 | 67 | 70.54 | 5.08 | 2.41 | 70 | 2.65 | 48939 | 120115 |
| FK-068 | 68 | 71.84 | 5.08 | 2.41 | 71 | 2.65 | 49660 | 121890 |
| FK-070 | 70 | 73.64 | 5.08 | 2.41 | 73 | 2.65 | 51128 | 125489 |
| FK-072 | 72 | 75.72 | 5.08 | 2.41 | 75 | 2.65 | 52591 | 129083 |
| FK-075 | 75 | 78.75 | 5.08 | 2.41 | 78 | 2.65 | 54780 | 134456 |
| FK-076 | 76 | 79.88 | 5.08 | 2.41 | 79 | 2.65 | 55505 | 136231 |
| FK-078 | 78 | 81.73 | 5.08 | 2.41 | 81 | 2.65 | 56968 | 139830 |
| FK-080 | 80 | 84.3 | 6.02 | 2.41 | 83.5 | 2.65 | 68342 | 143428 |
| FK-082 | 82 | 86.32 | 6.02 | 2.41 | 85.5 | 2.65 | 70033 | 146978 |
| FK-085 | 85 | 89.35 | 6.3 | 2.91 | 88.5 | 3.15 | 72595 | 175046 |
| FK-088 | 88 | 92.38 | 6.3 | 2.91 | 91.5 | 3.15 | 75175 | 181269 |
| FK-090 | 90 | 94.7 | 6.3 | 2.91 | 93.5 | 3.15 | 76865 | 185353 |
| FK-092 | 92 | 96.5 | 6.3 | 2.91 | 95.5 | 3.15 | 78582 | 189485 |
| FK-095 | 95 | 99.62 | 6.3 | 2.91 | 98.5 | 3.15 | 81140 | 195659 |
| FK-098 | 98 | 102.71 | 6.3 | 2.91 | 101.5 | 3.15 | 83702 | 201829 |
| FK-100 | 100 | 104.5 | 6.3 | 2.91 | 103.5 | 3.15 | 85415 | 205962 |
| FK-102 | 102 | 107.27 | 6.73 | 3.89 | 106 | 4.15 | 87127 | 269224 |
| FK-105 | 105 | 109.96 | 6.73 | 3.89 | 109 | 4.15 | 102687 | 277133 |
| FK-108 | 108 | 113.09 | 6.73 | 3.89 | 112 | 4.15 | 105619 | 285042 |
| FK-110 | 110 | 115.1 | 6.73 | 3.89 | 114 | 4.15 | 107580 | 290340 |
| FK-112 | 112 | 117.12 | 6.73 | 3.89 | 116 | 4.15 | 109520 | 295567 |
| FK-115 | 115 | 120.15 | 6.73 | 3.89 | 119 | 4.15 | 112473 | 303547 |
| FK-120 | 120 | 125.6 | 6.73 | 3.89 | 124 | 4.15 | 117344 | 316687 |
| FK-125 | 125 | 130.25 | 6.73 | 3.89 | 129 | 4.15 | 122237 | 329893 |
| FK-127 | 127 | 132.27 | 6.73 | 3.89 | 131 | 4.15 | 124199 | 335187 |
| FK-130 | 130 | 135.3 | 6.73 | 3.89 | 134 | 4.15 | 127130 | 343096 |
| FK-135 | 135 | 140.35 | 6.73 | 3.89 | 139 | 4.15 | 132023 | 356303 |
| FK-140 | 140 | 145.26 | 6.73 | 3.89 | 144 | 4.15 | 136916 | 369509 |
| FK-145 | 145 | 150.45 | 6.73 | 3.89 | 149 | 4.15 | 141809 | 382716 |
| FK-150 | 150 | 156.5 | 8.03 | 3.89 | 155 | 4.15 | 181986 | 395923 |
| FK-155 | 155 | 161.55 | 8.03 | 3.89 | 160 | 4.15 | 188026 | 409063 |
| FK-160 | 160 | 166.6 | 8.03 | 3.89 | 165 | 4.15 | 194094 | 422270 |
| FK-165 | 165 | 171.7 | 8.03 | 3.89 | 170 | 4.15 | 200166 | 435476 |
| FK-170 | 170 | 176.7 | 8.03 | 3.89 | 175 | 4.15 | 206237 | 448683 |
| FK-175 | 175 | 181.75 | 8.03 | 3.89 | 180 | 4.15 | 212305 | 461890 |
| FK-180 | 180 | 186.8 | 8.03 | 3.89 | 185 | 4.15 | 218377 | 475097 |
| FK-185 | 185 | 191.85 | 8.03 | 3.89 | 190 | 4.15 | 224417 | 488232 |
| FK-190 | 190 | 197.15 | 8.03 | 3.89 | 195 | 4.15 | 230489 | 501439 |
| FK-195 | 195 | 201.95 | 8.03 | 3.89 | 200 | 4.15 | 236556 | 514646 |
| FK-200 | 200 | 207 | 8.03 | 3.89 | 205 | 4.15 | 242628 | 527853 |
| FK-210 | 210 | 217.93 | 9.48 | 4.87 | 216 | 5.15 | 306763 | 657096 |
| FK-220 | 220 | 228.2 | 9.48 | 4.87 | 226 | 5.15 | 321344 | 688327 |
| FK-230 | 230 | 238.3 | 9.48 | 4.87 | 236 | 5.15 | 335961 | 719638 |
| FK-240 | 240 | 248.4 | 9.48 | 4.87 | 246 | 5.15 | 350578 | 750953 |
| FK-250 | 250 | 258.5 | 9.48 | 4.87 | 256 | 5.15 | 365199 | 782264 |
| FK-260 | 260 | 270.77 | 11.05 | 4.87 | 268 | 5.15 | 505300 | 813500 |
| FK-270 | 270 | 280.7 | 11.05 | 4.87 | 278 | 5.15 | 524748 | 844811 |
| FK-280 | 280 | 290.57 | 11.05 | 4.87 | 288 | 5.15 | 544200 | 876126 |
| FK-290 | 290 | 300.9 | 11.05 | 4.87 | 298 | 5.15 | 563599 | 907357 |
| FK-300 | 300 | 311 | 11.05 | 4.87 | 308 | 5.15 | 583051 | 938673 |
